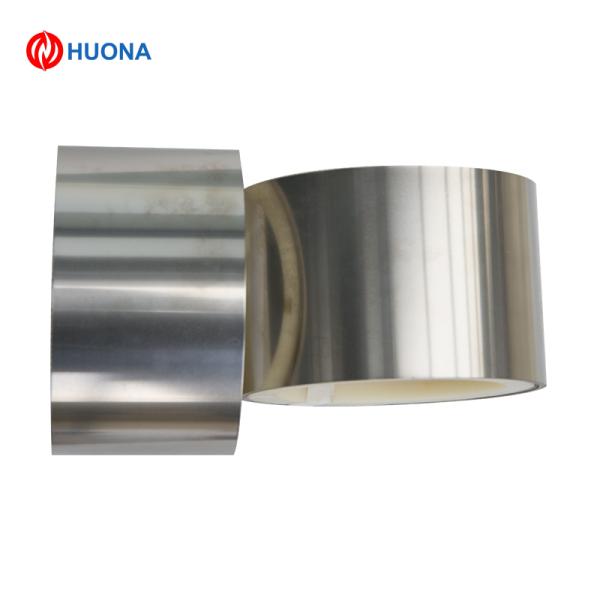

1j87 Soft Magnetic Alloy Sheet /Plate Ni79nb7mo2

Name: 1j87 Soft Magnetic Alloy Sheet Plate Ni79nb7mo2
Brand: HUONA
Price: 1 USD

Brand Name : HUONA

Model Number : 1J87

Certification : ISO9001

Place of Origin : CHINA

MOQ : 10

Price : DISCUSS

Payment Terms : L/C,T/T,Western Union,MoneyGram

Supply Ability : 200ton/Month

Delivery Time : 7-21 DAYS

Packaging Details : Wooden Case

Origin : China

Specification : Base on customers′ request

Surface : Bright

Yield Strength : ≥450 MPA

Curie Temperature : 470°C

Manufacturing Processes : Casting, hot and cold working, annealing

Trademark : HUONA

Customized Service : Support

Chemical Composition : Fe，Cu，NI

Contact Now

Product Description

1J87/1J88/1J89/1J90/1J91 alloy have high initial permeability, high hardness, high resistivity, and magnetic properties are not sensitive to stress, good resistance to abrasion

Main applications: Each kind of magnetic tape head of magnetic band device, chip as well as recorder, ferrite core of high frequency component

Specification/size

Strip(thickness*width ): 0.05mm~3.0mm*≤ 420mm
Bar: Round: Φ 5.5mm~250mm, square: 40mm~240mm*40mm~240mm
Wire: Φ 0.1mm~18mm
Plate(thickness*width*length): 3.0mm~60.0mm*1000mm*2000mm
Seamless tube: 6mm~219mm(OD)*0.5mm~18mm(WT)
Welded tube: 1mm~120mm(OD)*0.1mm~10mm(WT)

Brands

Chemical analysis (%)

Others

≤

1J87

0.03

0.020

0.30~0.60

≤O.30

78.5~
80.5

1.6~
2.2

6.5~7.5

1J88

O.03

O.020

≤0.60

≤O.30

79.5~
80.5

7.5~
9.0

lJ89

0.03

O.020

O.50~1.00

≤O.30

78.5~
80.5

3.5~
4.5

3.0~
3.6

Ti:1.8
~2.8

lJ90

0.03

0.020

O.020

≤0.60

≤O.30

79.O~80.O

1.8~2.2

O.40~
0.60

4.8~
7.2

1J91

0.03

O.020

≤O.60

≤O.30

78.5~80.O

O.90~
1.20

7.7~8.4

2.Usage
It is mostly used in small transformers, pulse transformers, relays, transformer, magnetic amplifier, electromagnetic clutch,the reactor coreand magnetic shielding which work inweak magnetic orsecondary magnetic field.

3.Features
1).Low coercivity and magnetic hysteresis loss;
2).High resistivity and loweddy-currentloss;
3).High initialmagnetic permeability and maximum magnetic permeability;
4).High saturation magnetic flux density;

4. Packing detail

1). Coil (plastic spool) + compressed ply-wooden case + pallet
2). Coil (plastic spool) + carton + pallet
